Dell Wyse

In May 2012, Dell acquired Wyse, a company that specializes in thin client
computing. Wyse wished to create a new, low powered thin client computer. This
new design is fan-less and comes in two form factors. A micro form factor and a
wider version that can accommodate legacy ports and an additional graphics card. At
Dell, I was the lead designer for the Wyse 5070 and its accessories.



A thin client computer is a low powered computer that uses flash memory, rather than a dedicated hard drive.
Applications and data are stored on a central server, rather than the computer itself. Many companies use thin clients for its size, security and value.
You may find these computers within the healthcare, banking, education and commercial industries.

Wyse_competition map.jpg

The top three manufacturers of Micro Form Factor PCs are Dell, Lenovo and HP. The Wyse 5070 is meant to be a middle range computer
that is more affordable than the OptiPlex 5060 MFF. The Wyse 3040 is a smaller, entry level model with less capabilities.


We explored ideas through prototypes. As the thin client requirements evolved, so did the designs. The new Wyse thin client computer had to feature
Dells design language. Simple, purposeful design and the angled diamond vent pattern that is seen on OptiPlex commercial PCs.


Wyse_sketches 1.jpg

One of the more favored iterations of the Wyse thin client computer included a center mounted I/O,
and a rotatable Dell badge thats seen on the OptiPlex Micro Form Factor

Wyse_sketch 2.jpg

As the project progressed, a center mounted motherboard was seen to be too expensive.
This direction explored a left justified I/O, and a “two tiered” layered design.

Wyse_sketch 3.jpg

The direction then evolved to a design that featured right justified ports and a centered power button and logo.
The bezel grew in depth for a stronger, blockier appearance. With the new ventilation requirements, the thin client had to incorporate the sided ventilation.
An elevated vertical stand was proposed.



The chosen direction for the Wyse thin client computer was then modeled in Creo. Both Slim and Wide versions were created,
along with accompanying cable covers

Wyse_prelim cad_family.jpg

With the chosen direction settled for the thin version, we then explored variations for the wide version.
Two directions explored how we could split the front bezel to better match the thin computer.
The version with the center mounted power button and logo was chosen.



The Wyse team wanted to explore the idea of a hooking a module up to the slim chassis computer. The module would
contain contain additional ports, optical drive or card reader

Wyse_prelim cad_caddy.jpg

Wyse wanted to explore the idea of a sidecar that attaches to the side of the thin client computer. This sidecar uses
different modules for a card reader or additional ports.


Wyse_prelim cad_minnow.jpg

The Wyse team also wished to mount the slim client computer onto the back of a monitor
while still retaining ventilation. We explored an idea where the backplate of the monitor riser included
standoffs that match the keyhole slots on the bottom of the computers


Wyse_prelim P mounts3.jpg

For the P and U series monitor mounts we explored orientation. Traditionally, Dell mounted computers face the right side. When the
Wyse computer is mounted with the VESA holes, it has to face left. The left facing mounted option
is preferred, because of its cleaner appearance.

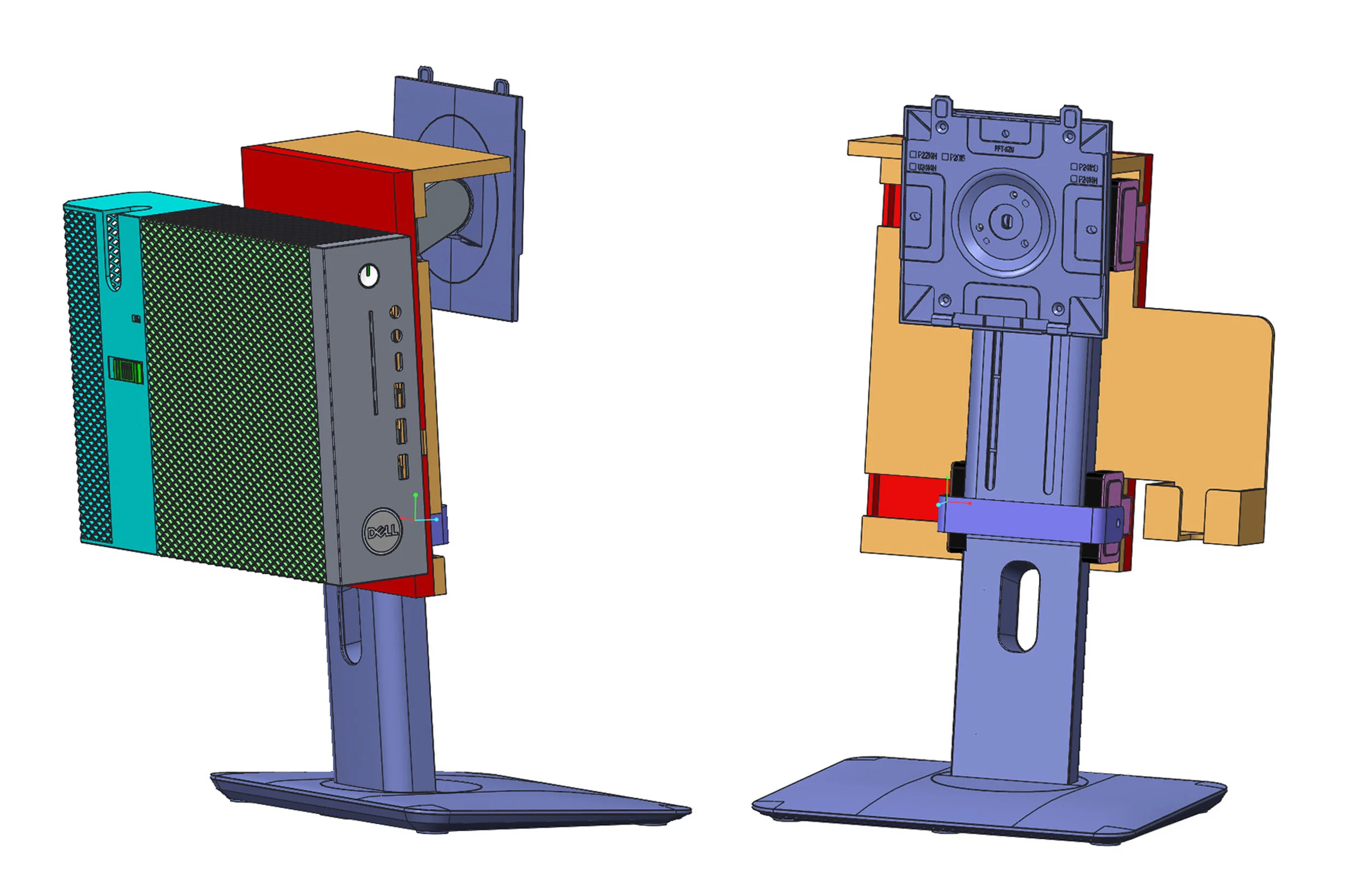

Wyse_wistron stands.jpg

Rather than design a variety of monitor mounts for all the different monitor models, we wanted a single mount that can be adjustable.
The manufacturer proposed an idea that hooks on top and has a clip on bottom
that secures the mount onto the neck of the stand.


PU mechanism crop2.jpg

The PU mount was designed around the mechanism the manufacturer proposed. A spring holds the plate up, keeping the wings closed in.
The user will open the wings of the PU mount, and the wings will adjust to the appropriate width monitor stand.


San Bernarndino_PU Mount_main 08272018.jpg

We styled the P/U series mount to be more consistent with Dell’s design language. The top hook and bottom clip are interchangeable
and come indifferent widths for the various monitor models.



San Bernarndino PU mount_08202018.4281 crop2.jpg

The mount can expand and contract to a variety of different sized monitor stands. From 130mm for the widest stand to the narrowest stand at 69mm.


San Bernarndino PU mount_backpack.jpg

The P/U Series Mount attached to the U2718 monitor


San Bernarndino_Slim and Wide_main 08272018.jpg

The finalized design for the Wyse 5070 slim and wide chassis


San Bernarndino_cooling.jpg

The Wyse 5070 is a fan-less design, so three sided venting is needed to cool the computer.


San Bernarndino_vert stand keyhole arrow.jpg

With 3-sided ventilation, a special vertical stand is needed for proper cooling. Both Wyse 5070 slim and wide versions fit onto an
elevated tripod stand by a keyhole fitting.


Arm  mount slim.415 crop2.jpg

The Wyse 5070 can fit within a dual-VESA bracket. This mount can be used in conjunction with an adjustable monitor arm.


Wall mount_Slim and Wide_06272017.414 crop2.jpg

The Wyse 5070 is light enough to be wall mounted. The wall mount features a matching hole pattern that allows for ventilation.
The power supply unit is housed in a detachable box for an integrated package.


Wall and dual VESA Mounts.jpg

The wall and arm mounts consists of bent sheetmetal construction. An additional plate is screwed onto the wall mount to create the arm mount.
The slim and wide chassis computers are secured within the mount with rubber bumpers. A thumbscrew on the mount screws into the computer,
securing it on the mount.

E series mount2_080212018.434.jpg

The entry level fixed stand monitor features a special mount that can accommodate both versions of the Wyse 5070
and the power supply unit box.

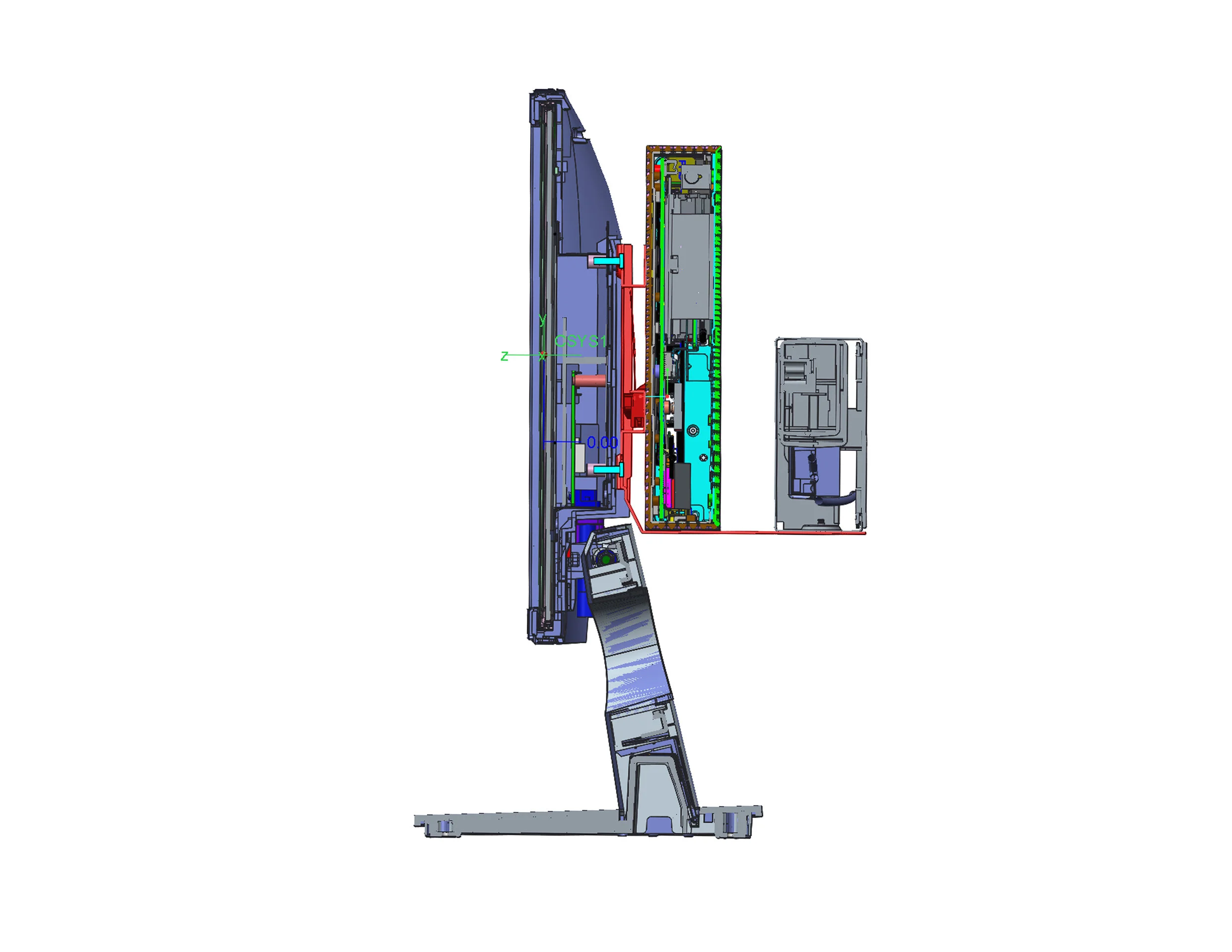

E series mount.jpg

The E-series mount screws into the back of the E-series monitor using the 75mm VESA holes. The mount is deep enough to accommodate the
56mm wide chassis computer.


Before production we made finalized prototypes, so that we can make sure that everything fits and works properly together.
